How to control stock for use in Toolpath

There are several ways to control stock settings in Toolpath and in Fusion to get what you need. This article describes what all of the options are.

In Toolpath:

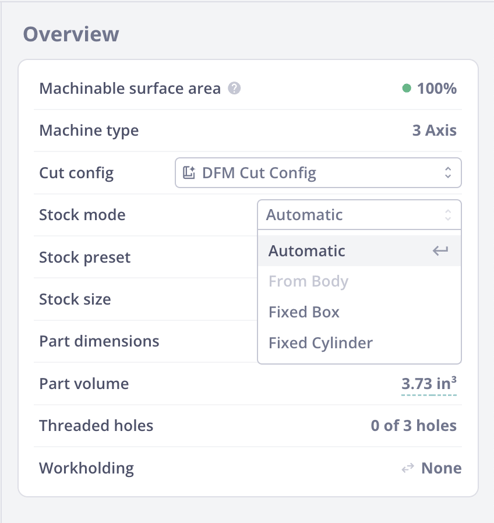

Stock mode: Accessible in Overview

Screenshot 2026-03-24 at 8.51.03 AM

Automatic - offsets model geometry based on your Stock Preset

From Body - allows selection of geometry in the uploaded file

Fixed Box - allows designation for XYZ dimensions

Fixed Cylinder - allows designation of diameter and length of a cylinder

From Fusion:

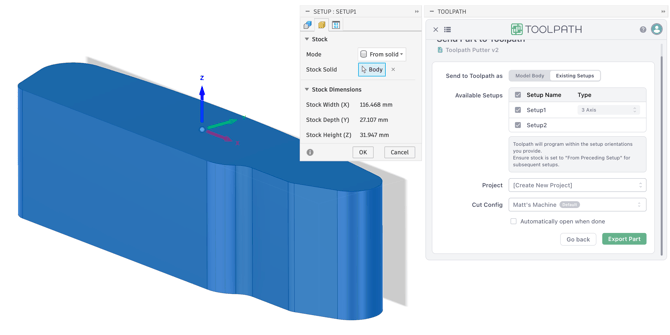

In Setup: Stock From Body

When choosing Mode: From Solid and selecting your Stock Body in a Fusion setup you can send that setup directly to Toolpath. Toolpath will also program within the setup orientations you provide.
Ensure stock is set to "From Preceding Setup" for subsequent setups.

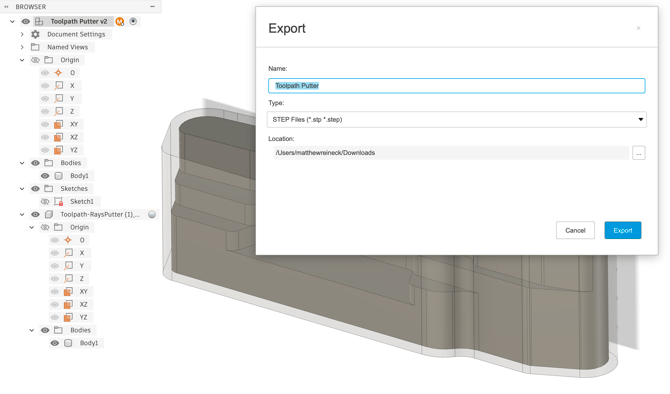

Screenshot 2026-03-24 at 9.01.40 AMMultiple Bodies in a .step file:

If you export a .step file with multiple bodies shown in your Fusion feature tree, when this part gets uploaded to Toolpath, the body will be selectable in under From Body in Stock Mode.

Screenshot 2026-03-24 at 9.28.21 AM

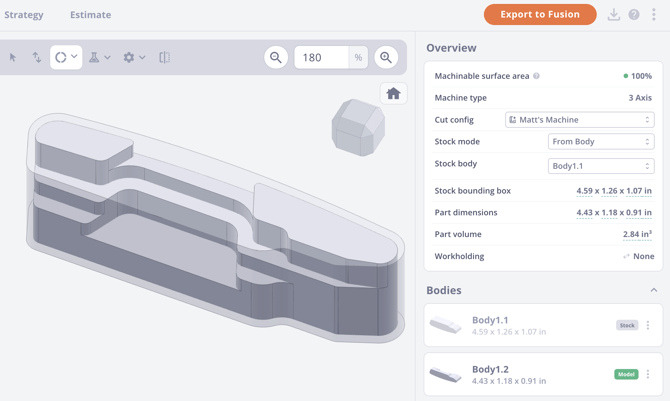

Screenshot 2026-03-24 at 9.32.47 AM

Select From Body -  which will allow selection of stock geometry in the uploaded file
