How to enable and use Section View

In Toolpath a user can now enable section views to be able to investigate features within their part

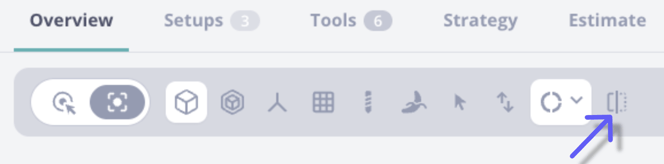

In the header above the graphics area, click on Show section view:

Then in the graphics area, select the plane by which you would like the section view generated:

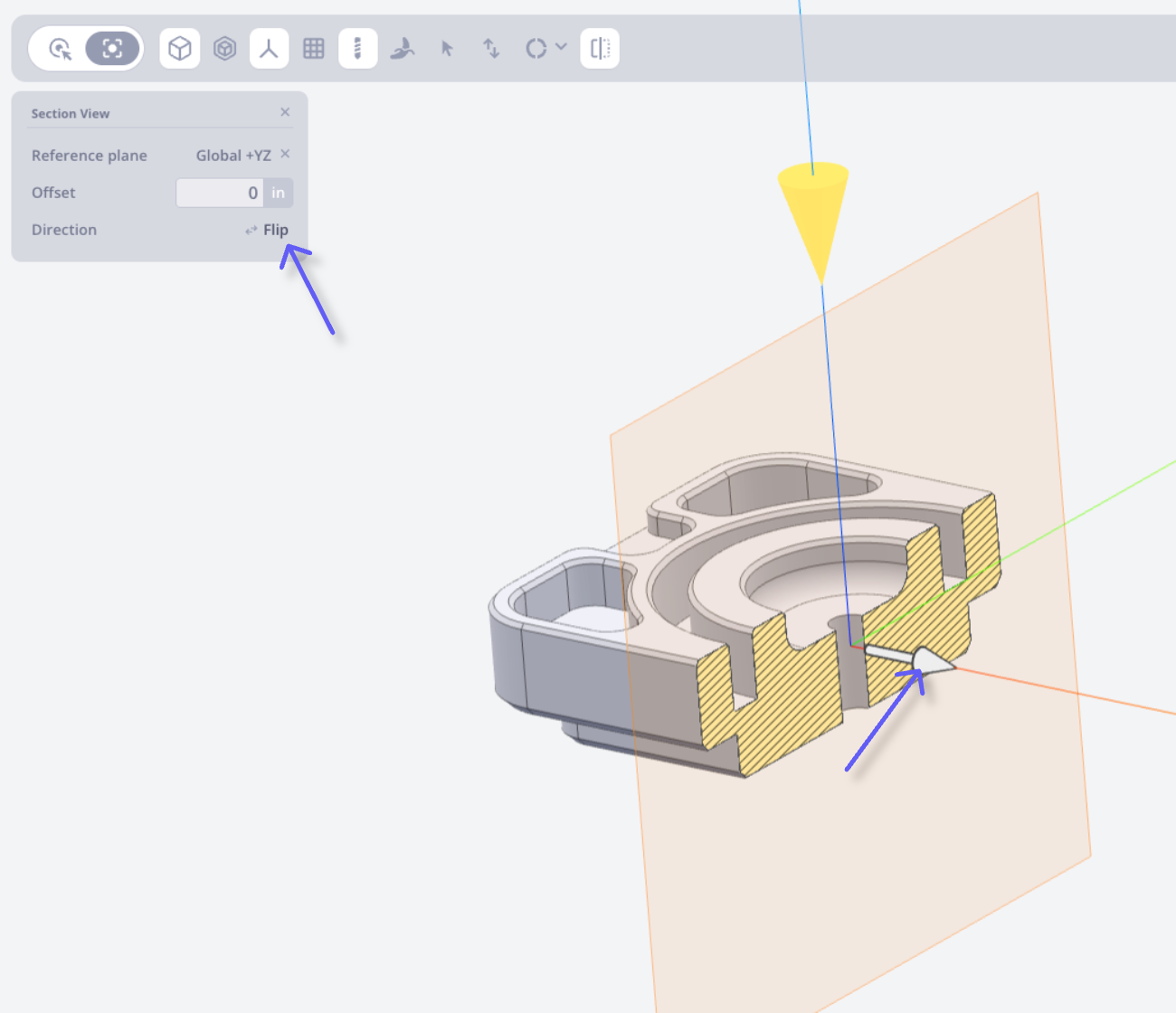

Move the plane to where you would like to see the section view by moving the arrow or by inputting a dimension in the pop up menu. Toggle the Flip checkbox to reverse the direction of the section:
