To install the Toolpath Add-In for Fusion, please follow the instructions below:
- Download the Toolpath Add-In by clicking the appropriate link below:
- The installer show prompts and run automatically.
- Open Fusion.

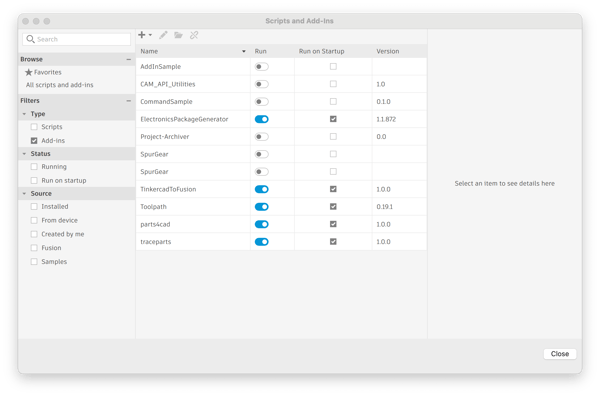

- In any Fusion workspace, go to the Utilities tab and open "Scripts and Add-ins".
- Go to "Add-ins".
- Toolpath should be shown in the list and turned on (blue).
If you receive an error when using the Import Program option in the Toolpath Add-In for Fusion, please start troubleshooting by using the Update Add-In command and restarting Fusion. This should allow parts to be imported.
If you receive any permissions errors downloading the PKG or MSI files, use the instructions below to download and install via a ZIP file:
- Download the ZIP file here. This will work on either operating system.
- Unzip the file by double-clicking it or right-clicking and selecting "Unzip". This will create a new folder. Windows will often create a duplicate sub folder in the unzipped result, be sure to copy the one that contains all the add-in files.
- Copy the unzipped folder to a location on your local drive. Please note that Fusion add-ins should NOT be installed on cloud drives like OneDrive.
- Open Fusion.
- Go to the Scripts & Add-ins dialog (shown in step #5 above)

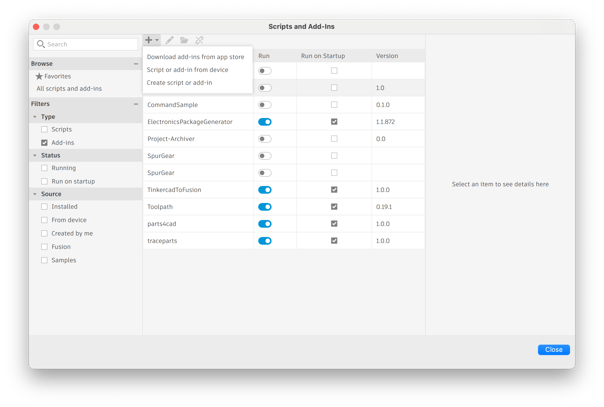

- Click the + icon and then click "Script or add-in from device". This will open Finder (Mac) or File Explorer (Windows).
- Navigate to the folder you copied in Step #3, select the top level of the folder, and click the "Open" button.
- You will now see Toolpath under My Add-ins.
- Ensure the "Run on Startup" checkbox is selected and click "Run".

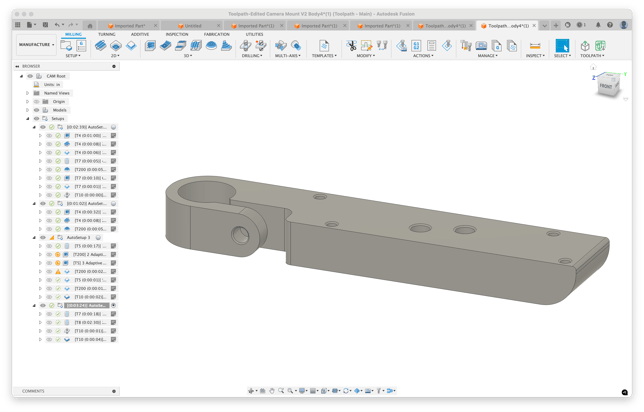

- You will now see the Toolpath Add-In in the Design and Manufacture workspaces in Fusion.
